Features and Benefits
• Tests the consistency of lubricating greases, petroleum waxes,
bitumens, pastes, creams and other solid to semi-solid products
• Automatically timed operator programmable penetration measurements
• Motorized placement of penetrator on sample surface
• Large LCD to display all functions
• RS232 port for data transfer
• Full measurement range of 0-620 in 1/10mm scale or 1/100mm scale
• Rechargeable battery or AC operation
• Large, removable base accommodates grease worker cups and other ASTM and non-standard sample containers
• Complete selection of penetrometer cones, needles and
accessories for petroleum products testing and for a wide range of other
applications
• Conforms to all ASTM, IP, ISO 9001 and related specifications for penetrometers

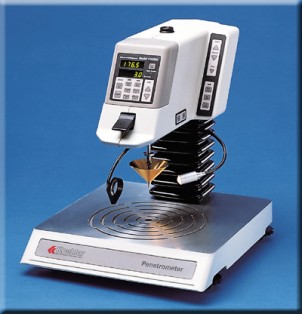

K95500 Microprocessor-Based Digital Penetrometer
A new microprocessor based
penetrometer loaded with advanced features to provide ease of operation
and highly reproducible consistency measurements of petroleum products.
Microprocessor control provides a full range of measurement and
reporting options, and operation is simplified by four user programmable
presets that facilitate lowering the penetrator tip to the sample
surface.
K95500-SFW Penetrometer Software
Penetrometer Software
automatically retrieves complete test parameters and final results on
each penetration test for hands-free data acquisition. In addition, the
software will determine test averages, standard deviations, and ASTM
test repeatability as well as maintain instrument and accessory
calibration information. Yield stress values are calculated as per ASTM
D2884, and full penetration values (ASTM D217) are automatically
determined from the 1/4 and 1/2 scale ASTM D1403 tests. The
sophisticated Windows®-based software package features an
easy-to-navigate operation, a straightforward user interface, minimal
draw on Windows® memory resources, an automatic real-time data
acquisition via RS232 connection, and a timer / stopwatch feature for
general laboratory use. The "test intelligent" software simplifies the
process by automatically choosing the standard test parameters when
selecting a specific penetration ASTM method. These default values are
easily changed by the user. The test results are easily printed in
accordance with ISO guidelines. The software package requires no PC
hardware installation and includes the software installation CD and
computer connection cable.
