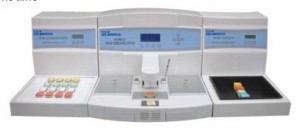

PD6-R Tissue Embedding & Cooling System

PD6-R Tissue Embedding & Cooling System

MARCA: SENOVA

PD6-R Tissue Embedding & Cooling System

Consulte
I. Tissue embedding center
FEATURES:
􀂾 Automatic controlling procedure,time of power on/off can be reset in any time of each day this week
􀂾 Adopted with new-type silastic heating element,heated quickly and ev enly,energy -sav ing
􀂾 American DALLAS temperature-measuring chip,high precision,stable perf ormance, display as icon in the state of working
􀂾 Paraff in tank,dispenser nozzle,left preservation box,right prev ervation box,embedding workstation can be separately controlled,work itself. Five different modes of controlling temperature and multi-ply over-heating protection ,safe,reliable,and energy -sav ing
􀂾 Automatic memorization,and self -recov ery, reserving resetting temperature when starting up
􀂾 Embedded tissue can be frozen at small cry o-plate with the instrument
􀂾 High capacity (5L) wax dispenser can finish tissue-embedding one time
􀂾 Low-v oltage lighting system,saf e and reliable
􀂾 2 modes of switch:manual control and foot-drive
􀂾 Heating of workstation and table storing f orceps ease f or tissue embedding
􀂾 Workstation,table placing forceps can be heated, easy f or embedding
􀂾 High-precision time indication,easy to reset

SPECIFICATIONS:
Volume of paraffin dispenser: 5 liters.
Range of temperature-control of forcep table: ambient---99℃.
Range of temperature in paraffin dispenser: ambient---99℃.,
Range of temperature in storing box: ambient---99℃.
Range of temperature at workstation: ambient---99℃.
Precision error: ±1%.
Mode of wax-flow: automatic soft-touching switch on/off, foot-operated control.
Time resetting: time of power on/off can be set freely in a week.
Power supply : 220V/50Hz,110V/60Hz
Rated power: 800VA.
Dimensions: 650x580x450 (LxDxH,mm)
Weight: 29kg

II. Cooling plate
New-ty pe inverter compressor ,it makes tissue paraffin cooled quickly.
Tef lon plating, easy to clean
Cooling temperature can be adjusted f reely
Temperature is set properly to avoid tissue wax f rom not cooling enough or frost splitting
Cry o-plate can be separately used and placed beside microtome

SPECIFICATIONS:
Setting temperature: +50℃~-35℃
Protection requirement of time delay
Area of cry o-plate: 330 x 322mm
Power supply : 220V/50Hz,110V/60Hz
Rated power: 100VA
Dimensions: 652x380x425(LxWxH,mm)
Weight: 20Kg

III. Conserving table

It conserves any ty pe of embedding cassette, embedding bottom formwork, embedding mould and tissue which is processed, with high-capacity, easy f or storage. It can be operated separately and be used f or tissue spreading with the microtome.

SOPECIFICATIONS:
Wetting temperature: ambient~90℃
Protection requirement of time delay
Volume: 4.5L
Power supply : 220V/50Hz,110V/60Hz
Rated power: 150VA
Dimensions: 602 x 380 x 425(LxWxH,mm)
Weight : 12Kg
